Selene LUNAR

Selene LUNAR Info:

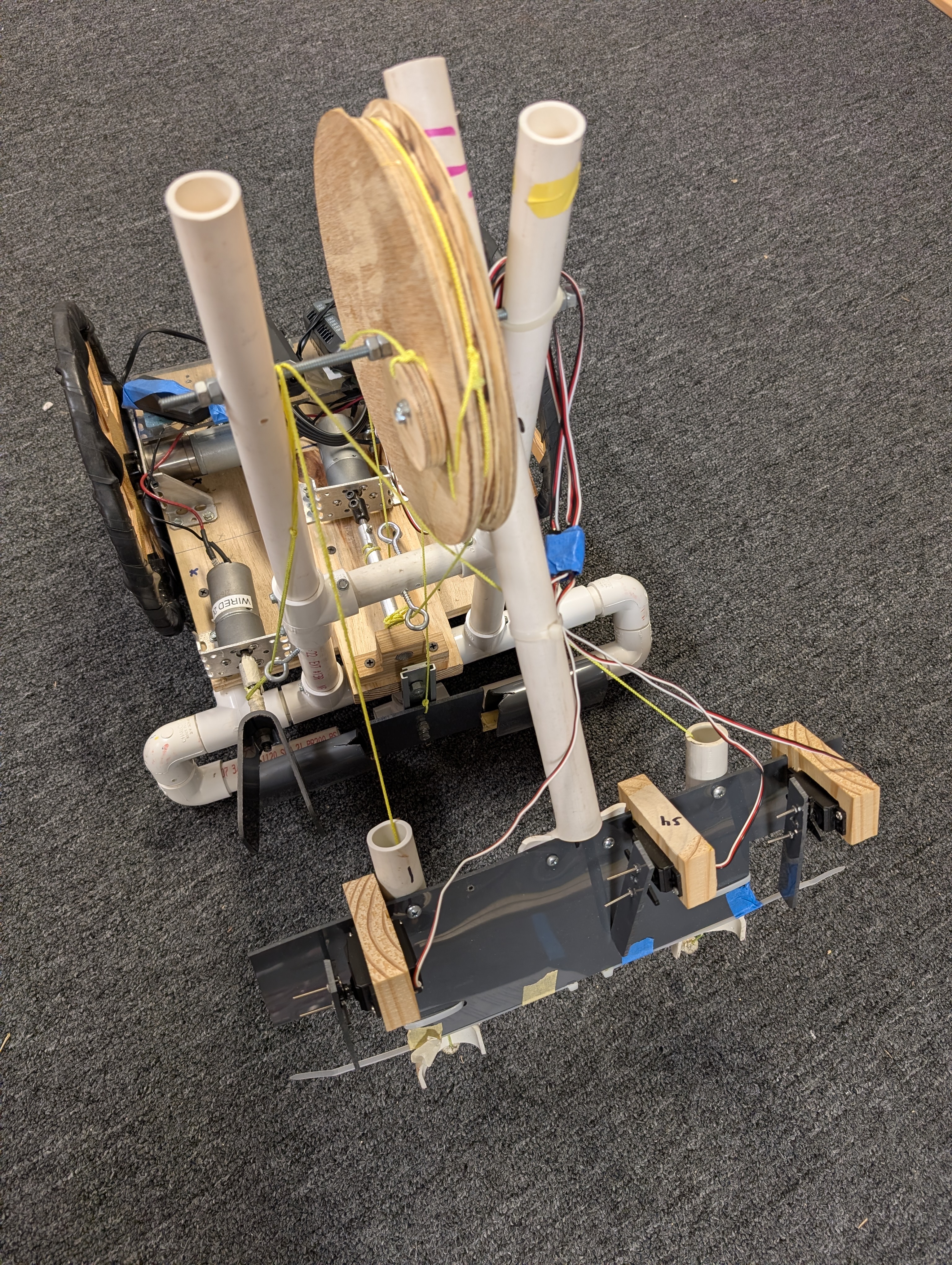

Selene LUNAR, the latest of WIRED's long line of high-quality robots, is capable of completing the power cable retrieval, robot battery replacement, radio antenna repair, and core sample mining tasks. Selene LUNAR is designed to work in a lunar environment and high lunar terrain.

Selene LUNAR Specifications:
Weight: 13.89 lbs
Size: 18.75" tall x 18.5" wide x 21.5" long
Base Speed: 19.2 in/s (9" wheels)
5 DOFs: Base Translation and Rotation (3), Forklift Translation (1), Habitat Box Dispenser (1)

Thumbnail Image 1

Thumbnail Image 1

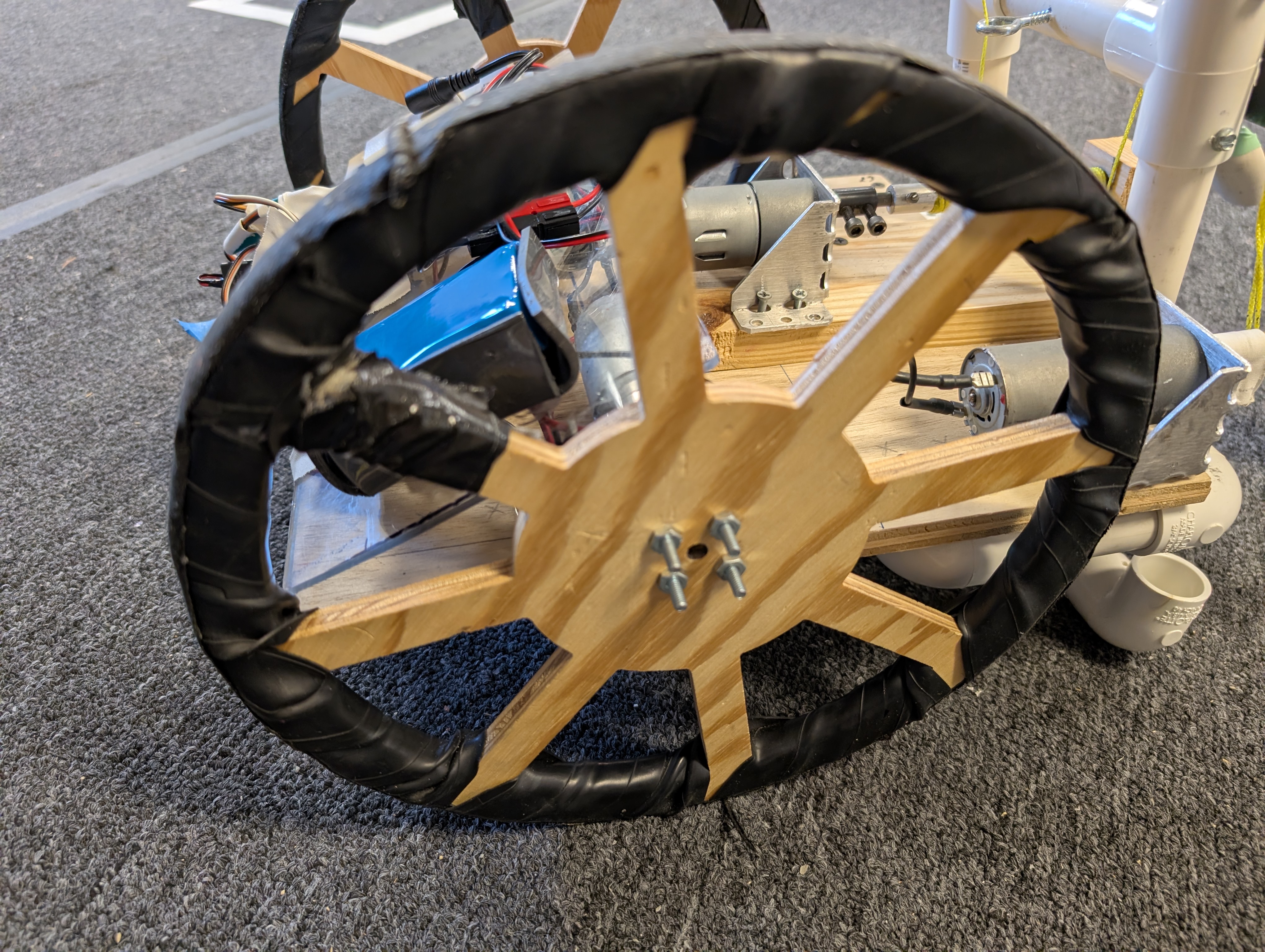

Base

This year's base is small, but it is still able to support the other subsystems. The 9" wheels help with ensuring a low center of gravity and keeping the robot balanced.

Thumbnail Image 1

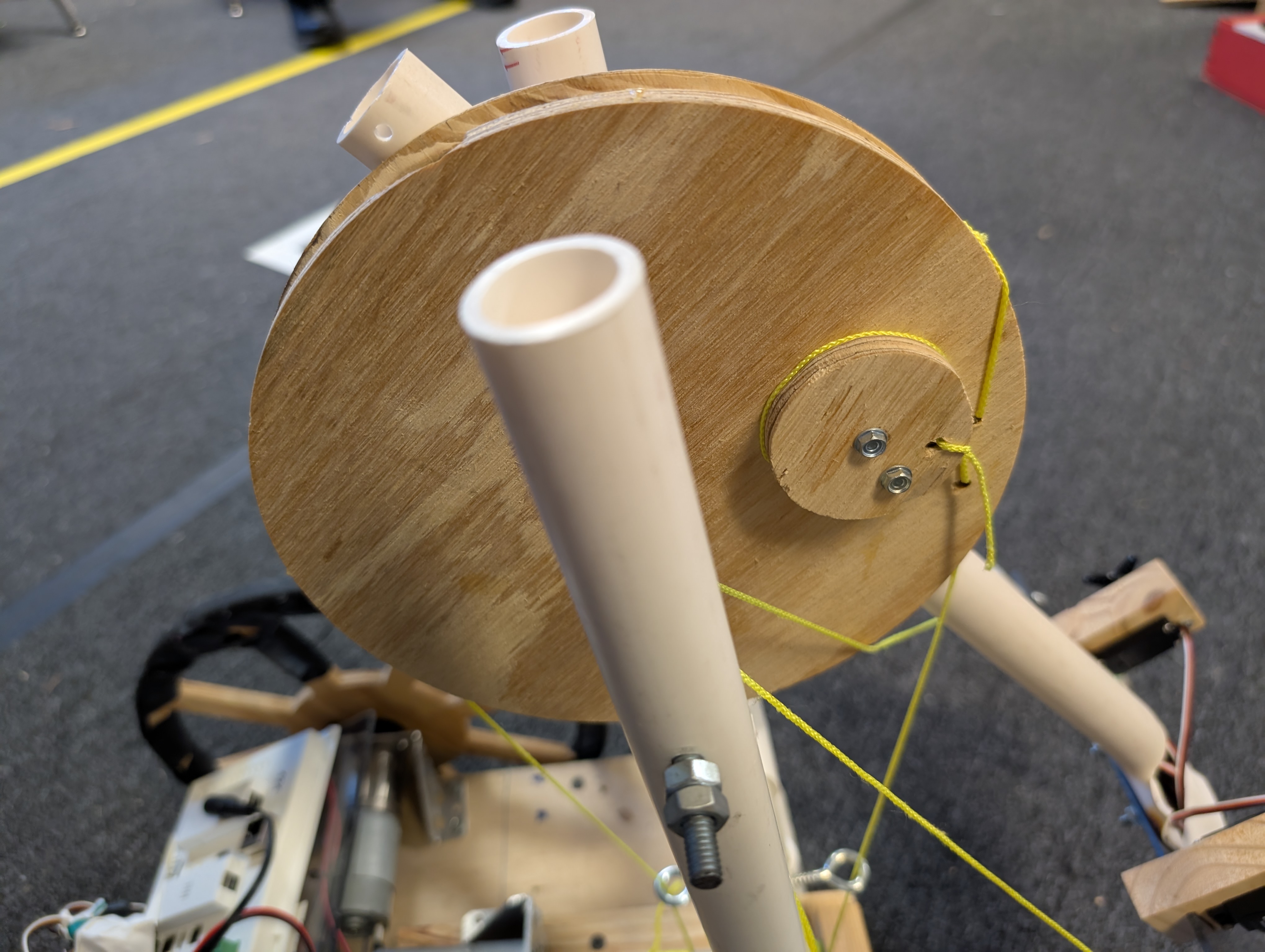

Forklift

The forklift design is a primary function of Selene LUNAR. This efficient system can easily perform various tasks by using this arm along with other mechanisms. The forklift uses a motor, 1/2 inch spindle, and string to move up and down.

Thumbnail Image 1

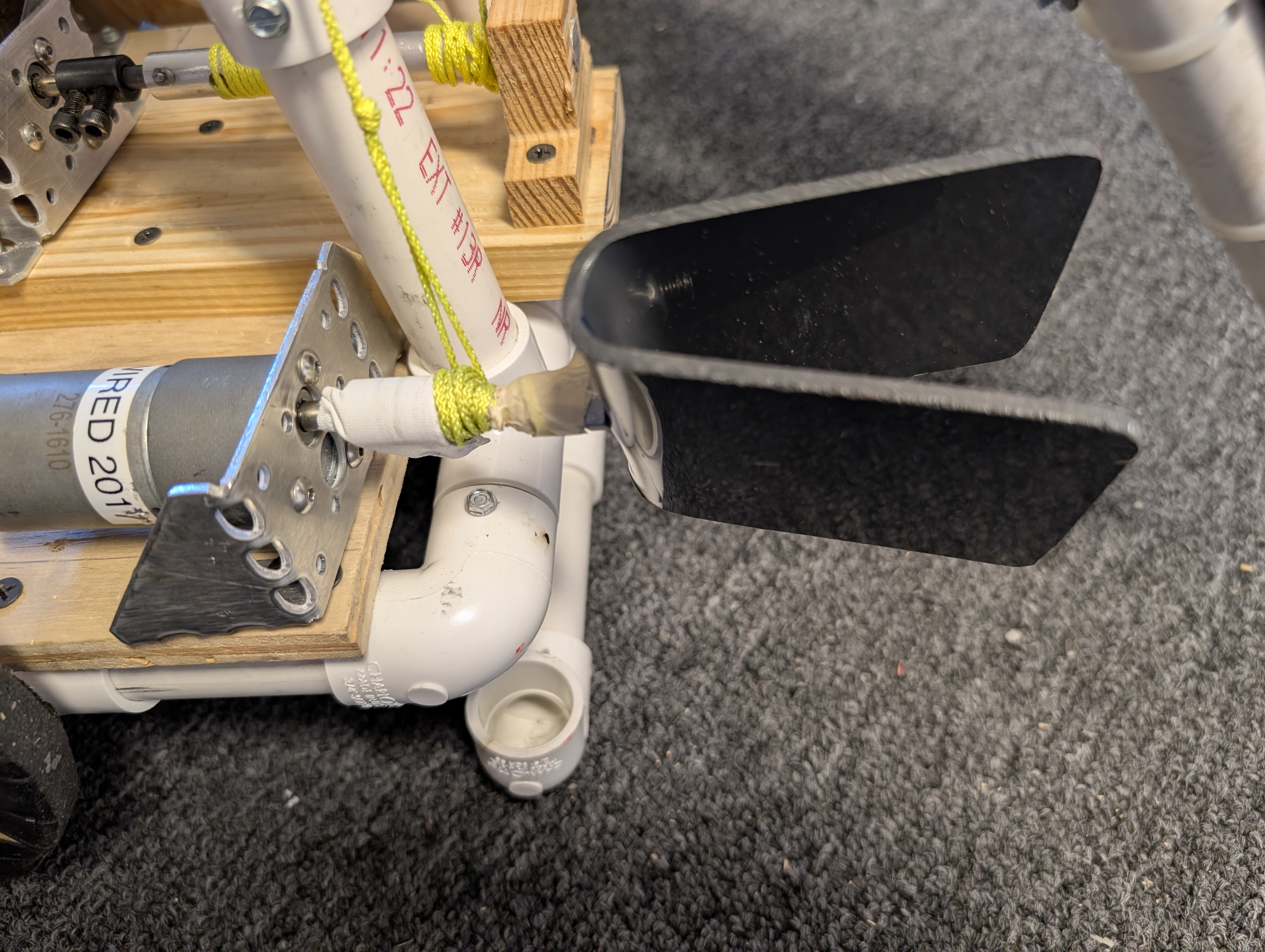

Manipulation

The manipulation subsystem carries the habitat modules and deposits them in the appropriate locations. It is an important factor in our design.

Thumbnail Image 1

Engineering Drawings

These are our engineering drawings, which show the robot from multiple angles.
